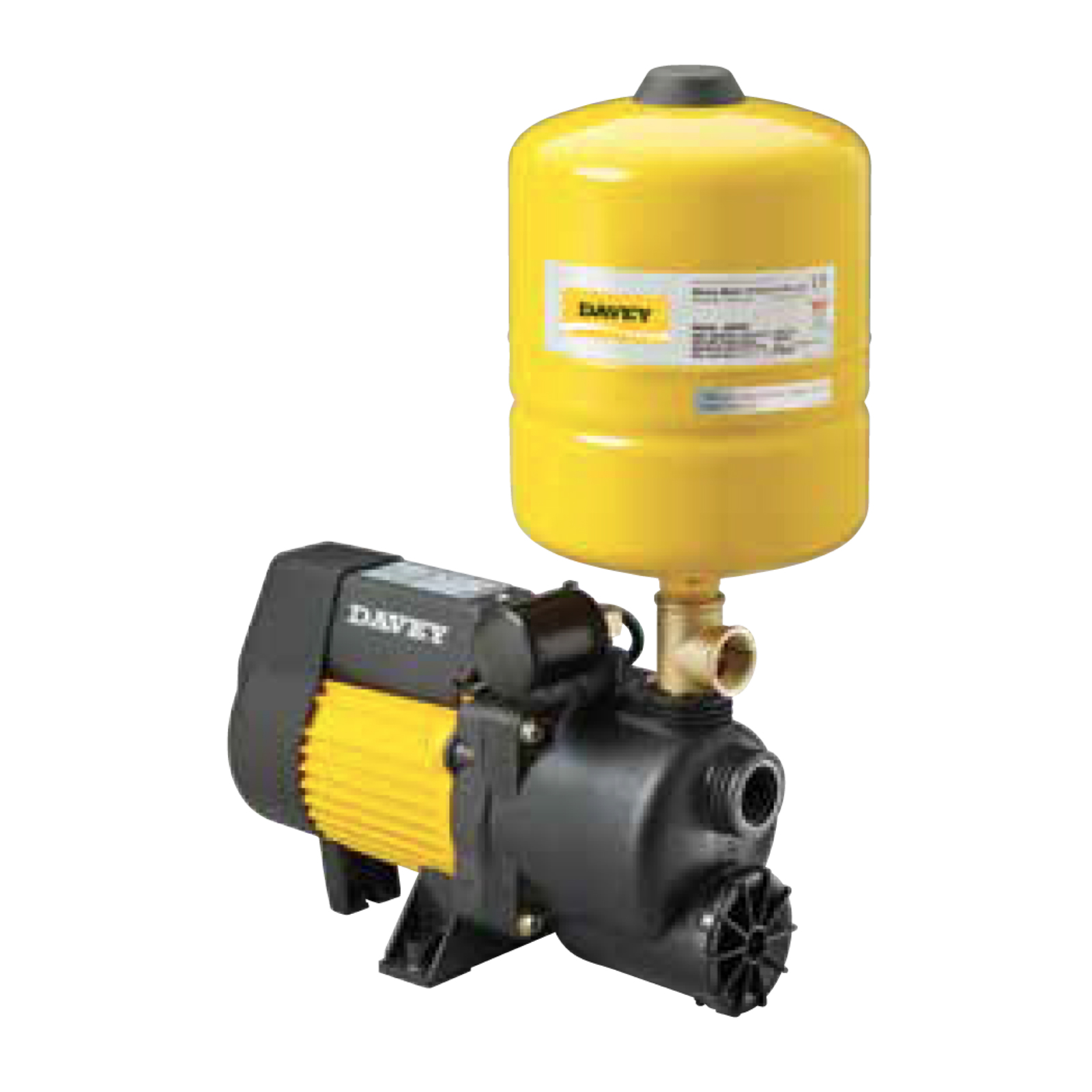

Davey XP45P8 Jet Assisted Centrifugal Pump – The Weekender Series W3 – 8L Pressure Tank

Details

Davey XP45P8 Jet Assisted Centrifugal Pump – The Weekender Series W3

Specifications

• Supply Voltage: 220-240V
• Supply frequency: 50Hz
• Nominal speed: 2850rpm
• Input power (P1): 0.6kW
• Output power (P2): 0.45kW
• Full load current: 2.4 amps
• Locked rotor current: 12 amps
• Starting: P.S.C.
• Enclosure class: IP55
• Insulation class: Class F
• Pressure switch cut-in: 140kPa
• Pressure switch cut-out: 280kPa
• Capacities to: 45 lpm @ 140kPa
• Maximum service pressure: 35m
• Cut-in pressure: 140kPa
• Cut-out pressure: 280kPa
• Maximum liquid temperature: 50ºC
• Maximum ambient temperature: 45ºC
• Maximum suction lift: 6m
• Inlet size: 1″ F
• Outlet size: 1″ F
• Dimensions (LxWxH): 424mm x 200mm x565mm
• Weight: 6.21kg
